Image IO

Charles Li
Copyright © 2005-2006
secret

The article shows you how to use Image input/output library. Image input is not too interesting because there are lot of ways to read an image file in Java. The interesting part is how to write images that you created to files.

Before the existence of Java ImageIO library. A programmer has to use third party package (e.g. ACME gif encoder) to save an image.

How to read image files

Here is a program to read an image:

Test.java

import java.awt.*;
import java.awt.image.*;
import javax.swing.*;
import java.awt.geom.*;

public class Test extends JFrame {
    BufferedImage bi;
    Graphics big; // stands for Buffered Image Graphics
    Toolkit toolkit;
    MediaTracker tracker;
    int width;
    int height;

    public Test() {
        toolkit = Toolkit.getDefaultToolkit();
        tracker = new MediaTracker(this);

        Image image = toolkit.getImage("mandel.gif");
        tracker.addImage(image, 0);
         try {
           // load all the image for later use
             tracker.waitForAll();
         } catch (InterruptedException ex) {
         }

         width = image.getWidth(this);
         height = image.getHeight(this);

         bi = new BufferedImage(width, height, BufferedImage.TYPE_INT_RGB);
         big = bi.getGraphics();
         big.drawImage(image, 0, 0, this);
    }

    public void paint(Graphics g) {
        setBackground(Color.white);

        Graphics2D g2 = (Graphics2D)g;

        TexturePaint paint = new TexturePaint(bi,
                            new Rectangle2D.Double(0,0,width,height));
        g2.setPaint(paint);
        g2.fill(new Ellipse2D.Double(25,50,255,125));

    }

    public static void main(String[] args) {
        JFrame f = new Test();
        f.setSize(300,200);
        f.setVisible(true);
        f.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
    }
}

Here is a rewrite of the above program:
ReadTest1.java

import java.awt.*;
import java.awt.image.*;
import javax.swing.*;
import java.awt.geom.*;
import javax.imageio.*;
import java.io.*;

public class ReadTest1 extends JFrame {
    BufferedImage bi;
    int width;
    int height;

    public ReadTest1() {
        try {
             bi = ImageIO.read(new File("mandel.gif"));
        } catch (IOException ex) {
            ex.printStackTrace();
            System.exit(0);
        }

        height = bi.getHeight();
        width = bi.getWidth();
    }

    public void paint(Graphics g) {
        setBackground(Color.white);

        Graphics2D g2 = (Graphics2D)g;

        TexturePaint paint = new TexturePaint(bi,
                            new Rectangle2D.Double(0,0,width,height));
        g2.setPaint(paint);
        g2.fill(new Ellipse2D.Double(25,50,255,125));

    }

    public static void main(String[] args) {
        JFrame f = new ReadTest1();
        f.setSize(300,200);
        f.setVisible(true);
        f.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
    }
}

ImageIO class has the following read method
- public static BufferedImage read(File input) throws IOException
- public static BufferedImage read(InputStream input) throws IOException
- public static BufferedImage read(URL input) throws IOException
- public static BufferedImage read(ImageInputStream stream) throws IOException

Here is another example using a different read method

import java.awt.*;
import java.awt.image.*;
import javax.swing.*;
import java.awt.geom.*;
import javax.imageio.*;
import java.io.*;

public class ReadTest2 extends JFrame {
    BufferedImage bi;
    int width;
    int height;

    public ReadTest2() {
        try {
             InputStream in = new FileInputStream("mandel.gif");
             bi = ImageIO.read(in);
        } catch (IOException ex) {
            ex.printStackTrace();
            System.exit(0);
        }

        height = bi.getHeight();
        width = bi.getWidth();
    }

    public void paint(Graphics g) {
        setBackground(Color.white);

        Graphics2D g2 = (Graphics2D)g;

        TexturePaint paint = new TexturePaint(bi,
                            new Rectangle2D.Double(0,0,width,height));
        g2.setPaint(paint);
        g2.fill(new Ellipse2D.Double(25,50,255,125));

    }

    public static void main(String[] args) {
        JFrame f = new ReadTest2();
        f.setTitle("ReadTest2");
        f.setSize(300,200);
        f.setVisible(true);
        f.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
    }
}

How to write an image to files (or other output stream)

WriteTest1

import java.awt.*;
import java.awt.image.*;
import java.awt.geom.*;
import javax.imageio.*;
import java.io.*;

public class WriteTest1 {
    public static void main(String[] args) {
        int width = 300;
        int height = 300;
        BufferedImage bi = new BufferedImage(width, height, BufferedImage.TYPE_INT_RGB);
        Graphics2D g2 = bi.createGraphics();
        g2.setColor(Color.white);
        g2.fillRect(0,0, width, height);
        g2.setStroke(new BasicStroke(10.0f));
        g2.setPaint(new GradientPaint(0,0, Color.green, 50,50, Color.yellow, true));
        g2.fill(new Ellipse2D.Float(50,50,200,200));
        File f = new File("image.png");
        try {
                // png is an image format (like gif or jpg)
                ImageIO.write(bi, "png", f);
        } catch (IOException ex) {
            ex.printStackTrace();
        }
    }
}

png is an image format. It is similar to jpg or gif. You can replace "png" by "jpg". There is no gif writter provided in Sun's java. So be careful.
Here are different write methods.
- static boolean write(RenderedImage im, String formatName, File output) throws IOException
- static boolean write(RenderedImage im, String formatName, OutputStream output) throws IOException
- static boolean write(RenderedImage im, String formatName, ImageOutputStream output) throws IOException

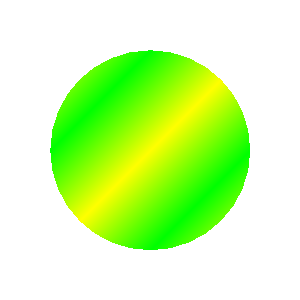

The image file is written to the file image.png. Here is the output file

Here is another way to write the same program:
WriteTest2.java

import java.awt.*;
import java.awt.image.*;
import java.awt.geom.*;
import javax.imageio.*;
import java.io.*;

public class WriteTest2 {
    public static void main(String[] args) {
        int width = 300;
        int height = 300;
        BufferedImage bi = new BufferedImage(width, height, BufferedImage.TYPE_INT_RGB);
        Graphics2D g2 = bi.createGraphics();
        g2.setColor(Color.white);
        g2.fillRect(0,0, width, height);
        g2.setStroke(new BasicStroke(10.0f));
        g2.setPaint(new GradientPaint(0,0, Color.green, 50,50, Color.yellow, true));
        g2.fill(new Ellipse2D.Float(50,50,200,200));

        try {
                FileOutputStream out = new FileOutputStream("image.jpg");
                ImageIO.write(bi, "jpg", out);
        } catch (IOException ex) {
            ex.printStackTrace();
        }
    }
}

Supported format

Here is a program that shows you the list of formats supported for writing and reading.
GetList.java

import javax.imageio.*;

public class GetList {
    public static void main(String args[]) {
         String readerNames[] =
            ImageIO.getReaderFormatNames();
         printlist(readerNames, "Reader names:");
         String readerMimes[] =
             ImageIO.getReaderMIMETypes();
         printlist(readerMimes, "Reader MIME types:");
         String writerNames[] =
            ImageIO.getWriterFormatNames();
         printlist(writerNames, "Writer names:");
         String writerMimes[] =
             ImageIO.getWriterMIMETypes();
         printlist(writerMimes, "Writer MIME types:");
     }

     private static void printlist(String names[], String title) {
         System.out.println(title);
         for (int i=0, n=names.length; i<n; i++) {
           System.out.println("\t" + names[i]);
          }
       }
}

Output

Reader names:
        jpeg
        gif
        JPG
        png
        jpg
        JPEG
Reader MIME types:
        image/png
        image/jpeg
        image/x-png
        image/gif
Writer names:
        jpeg
        JPG
        png
        jpg
        PNG
        JPEG
Writer MIME types:
        image/png
        image/jpeg
        image/x-png

ImageReader


import java.awt.image.*;
import javax.imageio.*;
import java.io.*;
import java.util.*;
import javax.imageio.stream.*;

public class ImageReaderTest1 {
    public static void main(String[] args) {
        // get all the reader that can read the format gif
        Iterator readers = ImageIO.getImageReadersByFormatName("gif");
        // get the first one among these reader
        ImageReader reader = (ImageReader)readers.next();
        Object source; // File or InputStream

        // first source
        source = new File("Bart.gif");

        // create image input stream
        ImageInputStream iis = null;
        try {
            // source is a file or an input stream
            iis = ImageIO.createImageInputStream(source);
        } catch (IOException ex) {
            ex.printStackTrace();
            System.exit(0);
        }

        // attached to the reader by calling
        reader.setInput(iis, true);


        // example
        try {
            System.out.println(reader.getHeight(0));
        } catch (IOException ex) {
            ex.printStackTrace();
            System.exit(0);
        }
    }
}

For further reference, refer to ImageReader

ImageWriter

The output file xxx.png

ImageWriterTest1.java

import java.awt.*;
import javax.swing.*;
import java.awt.geom.*;
import java.awt.image.*;
import javax.imageio.*;
import java.io.*;
import java.util.*;
import javax.imageio.stream.*;

public class ImageWriterTest1 {
    public static void main(String[] args) {
        // get all the writers that can write png format
        Iterator writers = ImageIO.getImageWritersByFormatName("png");
        // get the first one
        ImageWriter writer = (ImageWriter)writers.next();

       // Once an ImageWriter has been obtained, its destination must be set to an ImageOutputStream:
        File f = new File("xxx.png");
        ImageOutputStream ios;
        try {
            ios = ImageIO.createImageOutputStream(f);
            writer.setOutput(ios);
        } catch (IOException ex) {
            ex.printStackTrace();
            System.exit(0);
        }

      // Finally, the image may be written to the output stream:

      BufferedImage bi = new BufferedImage(200, 200, BufferedImage.TYPE_INT_RGB);
      Graphics2D g2 = bi.createGraphics();
      g2.setPaint(new GradientPaint(0,0, Color.orange, 0,50, Color.blue , true));
      g2.fillRect(0,0, 200, 200);
      g2.setPaint(new GradientPaint(0,0, Color.cyan, 50,50, Color.red, true));
      g2.fill(new Ellipse2D.Float(50,50,200,200));
      try {
          writer.write(bi);
      } catch (IOException ex) {
          ex.printStackTrace();
     }
    }
}

For detail, refer to The ImageWriter Class
